OCSE Oil Coolant Heating System Hazardous Location
Sectors
- Energy
- Engine
Markets
Applications
Product Categories

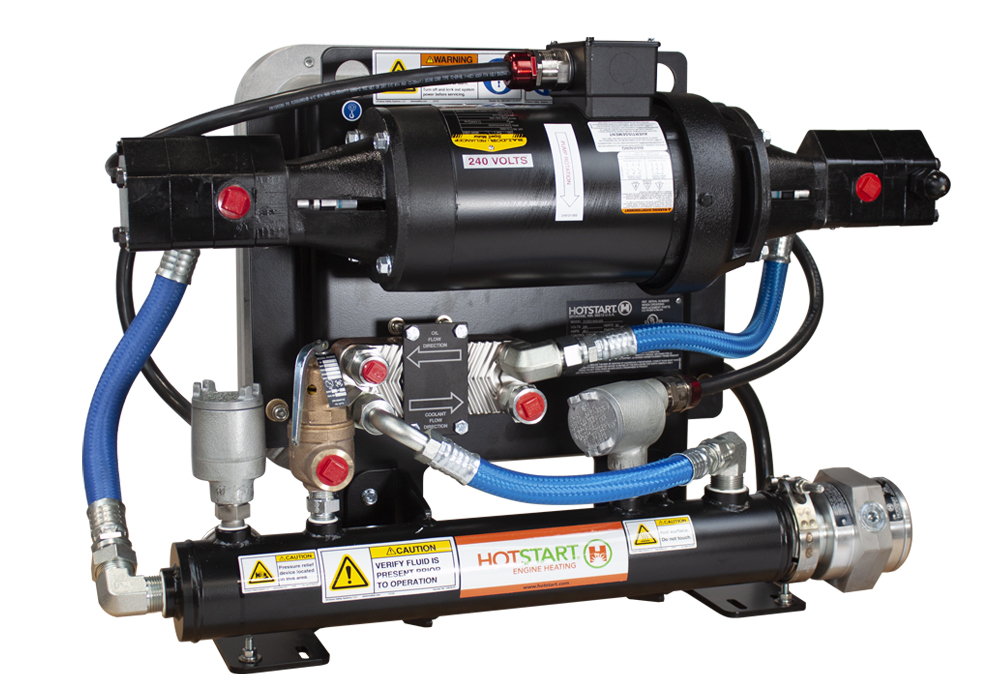

HOTSTART's OCSE (UL C/US listed; Class 1, Div. 2, Group D, T3 or Class 1, Zone 2, Group IIA T3 depending on configuration) is a compact combination oil and coolant heating system for use in North American hazardous locations and is designed to maintain engine starting temperatures and oil viscosity for gas compression or offshore equipment applications. To improve startability and availability, the OCSE maintains a consistent and uniform temperature by circulating heated coolant throughout the engine block and heated oil throughout the sump.
When compared to cold engine starts, maintaining optimal engine temperature during down time lowers NOx emissions during startup. Engine heating also eliminates the need for extended idling, reducing overall maintenance expenses. Designed as a user-friendly, pre-packaged system, the OCSE includes all necessary components and features a foot-mounted configuration to reduce overall footprint. Its remote automatic function and customer interface connections enable the OCSE to be easily integrated into any control system.
In oil and gas applications, improving equipment availability and maintaining system readiness are critical factors in reducing expenses and improving the bottom line. In cold climates, HOTSTART heating systems ensure immediate startup on demand even in freezing temperatures. In warm, humid climates, HOTSTART systems maintain equipment above the dew point, eliminating the risk of condensation forming inside the heads during cool down periods.
Can be used in hazardous locations.
- UL-C / US listed
Heating Information
Primary Heating
- Coolant Mix
Primary Heat Power
- 3 kW
- 6 kW
- 9 kW
- 12 kW
- 18 kW
Secondary Heating
- Lubrication Oil
Secondary Heat Power
- Coolant to oil heat exchanger
Power Specifications
Power Sources
- AC, Three-Phase, 60 Hz
Voltages
- 208
- 230
- 240
- 400
- 480
Power Connectors
- Hardwired
Temperature Control
Primary Temperature Control
- 32–176°F (0–80°C), adjustable
Primary Temperature Control Set Points
- 122°F (50°C), factory set
Primary High Limit Temperature
- 195°F (90°C)
Mount Types
- Foot
Inlets / Outlets
Inlets
- 0.75” NPT
Outlets
- 0.75” NPT
Secondary Inlets / Secondary Outlets
Secondary Inlets
- 0.5” NPT
- 0.75” NPT
Secondary Outlets
- 0.5” NPT
Ingress Options
Control Box Ingress
- NEMA 4, 7, 9
Certifications
- UL-C / US listed
