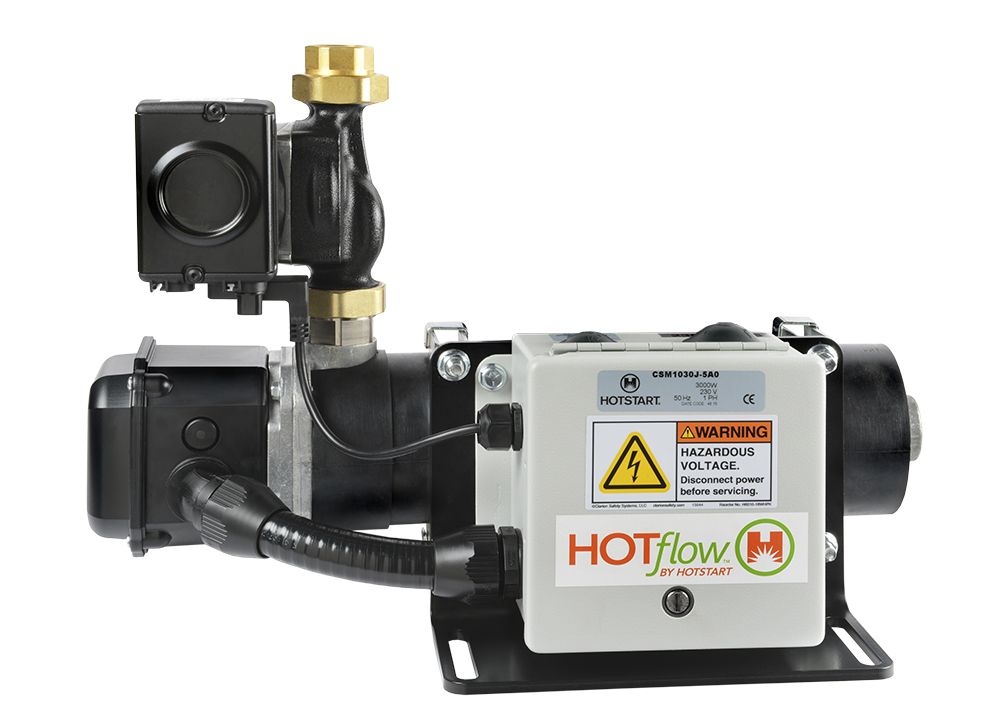

CSM HOTflow® 发动机加热器

部门

设备
发动机

市场

应用

产品类别

HOTflow®

CSM 动力和泵驱动的强制循环提供了出色的热量分布，在提高加热性能的同时降低维护成本，使其成为替代成对或多个基于自循环加热器加热器的可行选择。

CSM 和泵驱动的强制循环提供了出色的热量分布，在提高加热性能的同时降低维护成本，使其成为替代成对或多个基于自循环加热器的加热器的可行选择。

HOTflow® CSM 在 HOTflow® 产品线中提供了性能强劲的泵（流量达 10 gpm）和各种高效加热元件选择（多达 12 kW）。CSM 的加热功率与其节能设计相结合，使其成为花费巨大的排量高达 100 L 的大型发动机的基于对流的加热器的完美替代品。

CSM 产品线能够满足一系列广泛的条件，包括各种电源要求和机构认证。无论您的电力或供暖需求如何，都会有一个 CSM 型号可以满足您的特定加热系统应用。集成控制箱方便了电源连接，并启用了自动加热器运行，无需客户额外提供控制组件。

CSM 动力和泵驱动的强制循环提供了出色的热量分布，在提高加热性能的同时降低维护成本，使其成为替代成对或多个基于对流的加热器的可行选择。

不适用于危险场所。

加热信息

主要加热

水
冷却液混合比例

主要热功率

3 kW
6 kW
9 kW
10.5 kW
12 kW

电源规格

电源

AC,单相, 60 Hz
AC, 单相, 50 Hz
AC, 三相, 60 Hz
AC, 三相, 50 Hz

电压

120
208
230
240
440
400
480
575

电源连接器

电源连接器 - 有线接口

温度控制

主要温度控制

100–120 °F (38–49 °C)

安装类型

基座安装

入口 / 出口

入口

1” NPT

出口

1” NPT

防水等级选项

控制箱防水等级

NEMA 4
IP66

冷却液电机防水等级

NEMA 2
IP44

认证

可提供符合CE标志的型号
UL-C/EUA 认证

CSM HOTflow® 发动机加热器

部件编号

电压

瓦数

CSM10301-000

120

3 kW

CSM10301-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	Contactor	PRP232117-013	CONTACTOR 50A 120V 2P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	3 kW Element	RECSM10301	REPL ELEM ASM CSM 3kW 120V 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)

CSM10302-000

240

3 kW

CSM10302-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	Contactor	PRP232117-014	CONTACTOR 50A 240V 2P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	3 kW Element	RECSM10302	REPL ELEM ASM CSM 3kW 240V 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-000	PUMP 1/25HP 240V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)

CSM10304-000

480

3 kW

CSM10304-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	3 kW Element	RECSM10304	REPL ELEM ASM CSM 3kW 480V 1P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
No Image Available	Transformer	PRP235059-000	TRANSFORMER .15KVA 480/240-120V	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM10308-000

208

3 kW

CSM10308-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	3 kW Element	RECSM10308	REPL ELEM ASM CSM 3kW 208V 100-120F	25 x 7 x 7 in (635. x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-000	PUMP 1/25HP 240V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Contactor	PRP232117-014	CONTACTOR 50A 240V 2P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM1030J-5A0

230

3 kW

CSM1030J-5A0 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	3 kW Element	RECSM1030J-0A0	REPL ELEM ASM CSM 3kW 230V 100-130F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU1013-CSM	KIT REPL SENSING UNIT 100-130F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Union Pump	PRP228052-015	PUMP 230V 50/60Hz 10GPM UNION CE W/ 20IN CORD	12 x 11 x 5 in (305 x 279 x 127 mm)	6.7 lb (3.04 kg)
	Contactor	PRP232117-014	CONTACTOR 50A 240V 2P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM10602-000

240

6 kW

CSM10602-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	6 kW Element	RECSM10602	REPL ELEM ASM CSM 6kW 240V 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-000	PUMP 1/25HP 240V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Contactor	PRP232117-014	CONTACTOR 50A 240V 2P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM10604-000

480

6 kW

CSM10604-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	6 kW Element	RECSM10604	REPL ELEM ASM CSM 6kW 480V 1P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
No Image Available	Transformer	PRP235059-000	TRANSFORMER .15KVA 480/240-120V	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM10608-000

208

6 kW

CSM10608-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	6 kW Element	RECSM10608	REPL ELEM ASM CSM 6kW 208V 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-000	PUMP 1/25HP 240V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Contactor	PRP232117-014	CONTACTOR 50A 240V 2P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM1060J-5A0

230

6 kW

CSM1060J-5A0 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	6 kW Element	RECSM1060J-0A0	REPL ELEM ASM CSM 6kW 230V 100-130F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU1013-CSM	KIT REPL SENSING UNIT 100-130F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Union Pump	PRP228052-015	PUMP 230V 50/60Hz 10GPM UNION CE W/ 20IN CORD	12 x 11 x 5 in (305 x 279 x 127 mm)	6.7 lb (3.04 kg)
	Contactor	PRP232117-014	CONTACTOR 50A 240V 2P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM10902-000

240

9 kW

CSM10902-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	9 kW Element	RECSM10902	REPL ELEM ASM CSM 9kW 240V 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-000	PUMP 1/25HP 240V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Contactor	PRP232117-014	CONTACTOR 50A 240V 2P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM10904-000

480

9 kW

CSM10904-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	9 kW Element	RECSM10904	REPL ELEM ASM CSM 9kW 480V 1P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
No Image Available	Transformer	PRP235059-000	TRANSFORMER .15KVA 480/240-120V	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM10908-000

208

9 kW

CSM10908-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	9 kW Element	RECSM10908	REPL ELEM ASM CSM 9kW 208V 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-000	PUMP 1/25HP 240V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Contactor	PRP232117-014	CONTACTOR 50A 240V 2P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM1090J-5A0

230

9 kW

CSM1090J-5A0 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	9 kW Element	RECSM1090J-0A0	REPL ELEM ASM CSM 9kW 230V 100-130F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU1013-CSM	KIT REPL SENSING UNIT 100-130F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Union Pump	PRP228052-015	PUMP 230V 50/60Hz 10GPM UNION CE W/ 20IN CORD	12 x 11 x 5 in (305 x 279 x 127 mm)	6.7 lb (3.04 kg)
	Contactor	PRP232117-014	CONTACTOR 50A 240V 2P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM11058-000

208

10.5 kW

CSM11058-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	10.5 kW Element	RECSM11058	REPL ELEM ASM CSM 10.5kW 208V 1P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-000	PUMP 1/25HP 240V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Contactor	PRP232117-005	CONTACTOR 65A 240V 2P	5 x 4 x 3 in (127 x 102 x 76 mm)	2 lb (1 kg)
	24V Relay	PRP231154-100S	RELAY 24VDC 6A	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Relay Socket	PRP231153-000S	SOCKET SCREWLESS TERMINAL 12/24VDC	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM11202-000

240

12 kW

CSM11202-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	12 kW Element	RECSM11202	REPL ELEM ASM CSM 12kW 240V 1P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-000	PUMP 1/25HP 240V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Contactor	PRP232117-005	CONTACTOR 65A 240V 2P	5 x 4 x 3 in (127 x 102 x 76 mm)	2 lb (1 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM11204-000

480

12 kW

CSM11204-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	12 kW Element	RECSM11204	REPL ELEM ASM CSM 12kW 480V 1P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
No Image Available	Transformer	PRP235059-000	TRANSFORMER .15KVA 480/240-120V	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM1120J-5A0

230

12 kW

CSM1120J-5A0 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	12 kW Element	RECSM1120J-0A0	REPL ELEM ASM CSM 12kW 230V 1P 100-130F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU1013-CSM	KIT REPL SENSING UNIT 100-130F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Union Pump	PRP228052-015	PUMP 230V 50/60Hz 10GPM UNION CE W/ 20IN CORD	12 x 11 x 5 in (305 x 279 x 127 mm)	6.7 lb (3.04 kg)
	Contactor	PRP232117-005	CONTACTOR 65A 240V 2P	5 x 4 x 3 in (127 x 102 x 76 mm)	2 lb (1 kg)
	24V Relay	PRP231154-100S	RELAY 24VDC 6A	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Relay Socket	PRP231153-000S	SOCKET SCREWLESS TERMINAL 12/24VDC	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM30304-000

480

3 kW

CSM30304-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	3 kW Element	RECSM30304	REPL ELEM ASM CSM 3kW 480V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
No Image Available	Transformer	PRP235059-000	TRANSFORMER .15KVA 480/240-120V	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)

CSM30308-000

208

3 kW

CSM30308-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	3 kW Element	RECSM30308	REPL ELEM ASM CSM 3kW 208V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Transformer	PRP235081-000	TRANSFORMER 150VA 208/277 PRIMARY 1	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)

CSM3030A-5A0

400

3 kW

CSM3030A-5A0 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	3kW Element	RECSM3030A	REPL ELEM ASM CSM 3kW 400V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU1013-CSM	KIT REPL SENSING UNIT 100-130F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Union Pump	PRP228052-015	PUMP 230V 50/60Hz 10GPM UNION CE W/ 20IN CORD	12 x 11 x 5 in (305 x 279 x 127 mm)	6.7 lb (3.04 kg)
	Transformer	PRP235098-000	TRANSFORMER 150VA 200/400/460/575V PRIMARLY 240V SECONDARY	5 x 5 x 5 in (127 x 127 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-001	CONTACTOR 35A 240V 3P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231154-100S	RELAY 24VDC 6A	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Relay Socket	PRP231153-000S	SOCKET SCREWLESS TERMINAL 12/24VDC	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM30604-000

480

6 kW

CSM30604-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	6 kW Element	RECSM30604	REPL ELEM ASM CSM 6kW 480V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
No Image Available	Transformer	PRP235059-000	TRANSFORMER .15KVA 480/240-120V	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM30605-000

575

6 kW

CSM30605-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	6 kW Element	RECSM30605	REPL ELEM ASM CSM 6kW 575V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231068-002	FUSE 2 AMP 600V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
No Image Available	Transformer	PRP235085-000S	TRANSFORMER 150VA 600/575 500 PRIMA

CSM30608-000

208

6 kW

CSM30608-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	6 kW Element	RECSM30608	REPL ELEM ASM CSM 6kW 208V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Transformer	PRP235081-000	TRANSFORMER 150VA 208/277 PRIMARY 1	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM3060A-5A0

400

6 kW

CSM3060A-5A0 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	6 kW Element	RECSM3060A-0A0	REPL ELEM ASM CSM 6kW 400V 3P 100-130F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU1013-CSM	KIT REPL SENSING UNIT 100-130F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Union Pump	PRP228052-015	PUMP 230V 50/60Hz 10GPM UNION CE W/ 20IN CORD	12 x 11 x 5 in (305 x 279 x 127 mm)	6.7 lb (3.04 kg)
	Transformer	PRP235098-000	TRANSFORMER 150VA 200/400/460/575V PRIMARLY 240V SECONDARY	5 x 5 x 5 in (127 x 127 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-001	CONTACTOR 35A 240V 3P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231154-100S	RELAY 24VDC 6A	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Relay Socket	PRP231153-000S	SOCKET SCREWLESS TERMINAL 12/24VDC	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM3060F-5A1

440

6 kW

CSM3060F-5A1 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	6 kW Element	RECSM3060F	REPL ELEM ASM CSM 6kW 440V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU1013-CSM	KIT REPL SENSING UNIT 100-130F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Union Pump	PRP228052-015	PUMP 230V 50/60Hz 10GPM UNION CE W/ 20IN CORD	12 x 11 x 5 in (305 x 279 x 127 mm)	6.7 lb (3.04 kg)
	Transformer	PRP235098-000	TRANSFORMER 150VA 200/400/460/575V PRIMARLY 240V SECONDARY	5 x 5 x 5 in (127 x 127 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-001	CONTACTOR 35A 240V 3P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231154-100S	RELAY 24VDC 6A	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Relay Socket	PRP231153-000S	SOCKET SCREWLESS TERMINAL 12/24VDC	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Light Switch	PRP231174-001	KIT LIGHT & SWITCH CSM 240V	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM30904-000

480

9 kW

CSM30904-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	9 kW Element	RECSM30904	REPL ELEM ASM CSM 9kW 480V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
No Image Available	Transformer	PRP235059-000	TRANSFORMER .15KVA 480/240-120V	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM30905-000

575

9 kW

CSM30905-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	9 kW Element	RECSM30905	REPL ELEM ASM CSM 9kW 575V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231068-002	FUSE 2 AMP 600V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
No Image Available	Transformer	PRP235085-000S	TRANSFORMER 150VA 600/575 500 PRIMA

CSM30908-000

208

9 kW

CSM30908-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	9 kW Element	RECSM30908	REPL ELEM ASM CSM 9kW 208V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM3090A-5A0

400

9 kW

CSM3090A-5A0 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	9 kW Element	RECSM3090A-0A0	REPL ELEM ASM CSM 9kW 400V 3P 100-130F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU1013-CSM	KIT REPL SENSING UNIT 100-130F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Union Pump	PRP228052-015	PUMP 230V 50/60Hz 10GPM UNION CE W/ 20IN CORD	12 x 11 x 5 in (305 x 279 x 127 mm)	6.7 lb (3.04 kg)
	Transformer	PRP235098-000	TRANSFORMER 150VA 200/400/460/575V PRIMARLY 240V SECONDARY	5 x 5 x 5 in (127 x 127 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-001	CONTACTOR 35A 240V 3P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231154-100S	RELAY 24VDC 6A	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Relay Socket	PRP231153-000S	SOCKET SCREWLESS TERMINAL 12/24VDC	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM3090F-5A1

440

9 kW

CSM3090F-5A1 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	9 kW Element	RECSM3090F-0A0	REPL ELEM ASM CSM 9kW 440V 3P 100-130F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU1013-CSM	KIT REPL SENSING UNIT 100-130F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Union Pump	PRP228052-015	PUMP 230V 50/60Hz 10GPM UNION CE W/ 20IN CORD	12 x 11 x 5 in (305 x 279 x 127 mm)	6.7 lb (3.04 kg)
	Transformer	PRP235098-000	TRANSFORMER 150VA 200/400/460/575V PRIMARLY 240V SECONDARY	5 x 5 x 5 in (127 x 127 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-001	CONTACTOR 35A 240V 3P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231154-100S	RELAY 24VDC 6A	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Relay Socket	PRP231153-000S	SOCKET SCREWLESS TERMINAL 12/24VDC	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Light Switch	PRP231174-001	KIT LIGHT & SWITCH CSM 240V	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM31204-000

480

12 kW

CSM31204-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	12 kW Element	RECSM31204	REPL ELEM ASM CSM 12kW 480V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
No Image Available	Transformer	PRP235059-000	TRANSFORMER .15KVA 480/240-120V	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM31205-000

575

12 kW

CSM31205-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	12 kW Element	RECSM31205	REPL ELEM ASM CSM 12kW 575V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231068-002	FUSE 2 AMP 600V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
No Image Available	Transformer	PRP235085-000S	TRANSFORMER 150VA 600/575 500 PRIMA

CSM31208-000

208

12 kW

CSM31208-000 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	12 kW Element	RECSM31208	REPL ELEM ASM CSM 12kW 208V 3P 100-120F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU10-CSM	KIT REPL SENSING UNIT 100-120F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Pump	PRP228052-001	PUMP 1/25HP 120V 1P 10GPM GRUNDFOS	6 x 7 x 5 in (152 x 178 x 127 mm)	7.25 lb (3.3 kg)
	Pump Flange Kit	PRP213009-001	FLANGE KIT 1.0 CAST IRON	8 x 4 x 4 in (203 x 102 x 102 mm)	3 lb (1.4 kg)
	Transformer	PRP235081-000	TRANSFORMER 150VA 208/277 PRIMARY 1	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-000	CONTACTOR 35A 120V 3P	5 x 4 x 3 in (127 x 107 x 76 mm)	3 lb (1.4 kg)
	24V Relay	PRP231149-100S	RELAY 24VDC FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.4 kg)
	Relay Socket	PRP231148-100S	RELAY SOCKET FINDER	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM3120A-5A0

400

12 kW

CSM3120A-5A0 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	12 kW Element	RECSM3120A-0A0	REPL ELEM ASM CSM 12kW 400V 3P 100-130F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU1013-CSM	KIT REPL SENSING UNIT 100-130F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Union Pump	PRP228052-015	PUMP 230V 50/60Hz 10GPM UNION CE W/ 20IN CORD	12 x 11 x 5 in (305 x 279 x 127 mm)	6.7 lb (3.04 kg)
	Transformer	PRP235098-000	TRANSFORMER 150VA 200/400/460/575V PRIMARLY 240V SECONDARY	5 x 5 x 5 in (127 x 127 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-001	CONTACTOR 35A 240V 3P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231154-100S	RELAY 24VDC 6A	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Relay Socket	PRP231153-000S	SOCKET SCREWLESS TERMINAL 12/24VDC	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

CSM3120F-5A2

440

12 kW

CSM3120F-5A2 配件列表

配件图片	Name	配件号	配件描述	尺寸	重量
	12 kW Element	RECSM3120F-0A0	REPL ELEM ASM CSM 12kW 440V 3P 100-130F	25 x 7 x 7 in (635 x 178 x 178 mm)	3.4 lb (1.5 kg)
	Thermostat	RSU1013-CSM	KIT REPL SENSING UNIT 100-130F & MTG CLIP CSM	5 x 4 x 3 in (127 x 102 x 76 mm)	0.1 lb (0.05 kg)
	Union Pump	PRP228052-015	PUMP 230V 50/60Hz 10GPM UNION CE W/ 20IN CORD	12 x 11 x 5 in (305 x 279 x 127 mm)	6.7 lb (3.04 kg)
	Transformer	PRP235098-000	TRANSFORMER 150VA 200/400/460/575V PRIMARLY 240V SECONDARY	5 x 5 x 5 in (127 x 127 x 127 mm)	7 lb (3.175 kg)
	Contactor	PRP232117-001	CONTACTOR 35A 240V 3P	4 x 4 x 5 in (102 x 102 x 127 mm)	7 lb (3.175 kg)
	24V Relay	PRP231154-100S	RELAY 24VDC 6A	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Relay Socket	PRP231153-000S	SOCKET SCREWLESS TERMINAL 12/24VDC	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231059-002	FUSE 2 AMP 500V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Fuse	PRP231026-002	FUSE 2 AMP 250V MAX	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)
	Light Switch	PRP231174-001	KIT LIGHT & SWITCH CSM 240V	5 x 4 x 3 in (127 x 102 x 76 mm)	3 lb (1.1 kg)

相关产品

CKM HOTflow® 发动机加热器

CKM预热柴油或燃气发动机，可确保它们准备好启动并快速承担满载，同时对关键部件的磨损最小化。

CKM 型号加热器旨在真正取代传统基于对流的系统。CKM 采用机械驱动泵和定制设计的泵壳，搭配不锈钢罐，保留了与对流系统相似的尺寸和选项。它还可以垂直或水平安装，便于升级到高效的强制循环系统。CKM 的目的是可延长使用寿命，并让您高枕无忧，您可以使用所有主要操作组件，包括内置排气螺丝和可复位的上限恒温器。

HOTflow® 发动机加热器配有集成的泵，可使热…

主要加热

水
冷却液混合比例

主要热功率

3 kW
4 kW
5 kW

CTM HOTflow® 发动机加热器

CTM 系统占地面积小，其高效的强制循环机制，广泛应用于各种防风雨小型发动机。

HOTflow® CTM 系统占地面积小，其高效的强制循环机制能够加热排量高达 20 L 的发动机，广泛应用于各种防风雨小型发动机。为客户提供多种型号选择，包括 UL/C-US 认证和符合 CE 标准的型号。

CTM 的入口和出口可以按 90°递增的方式重新定向，以适应加热器的管道。绝大多数安装都可以使用随附的安装工具包完成，还为客户提供了可选的防振套件。…

主要加热

水
冷却液混合比例

主要热功率

1 kW
1.5 kW
2.5 kW
